EagleLite

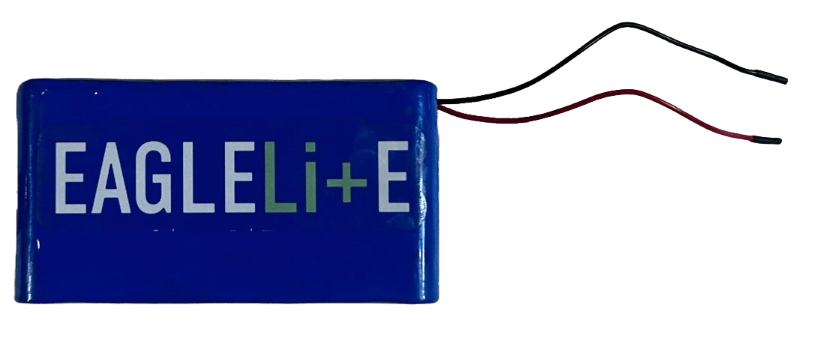

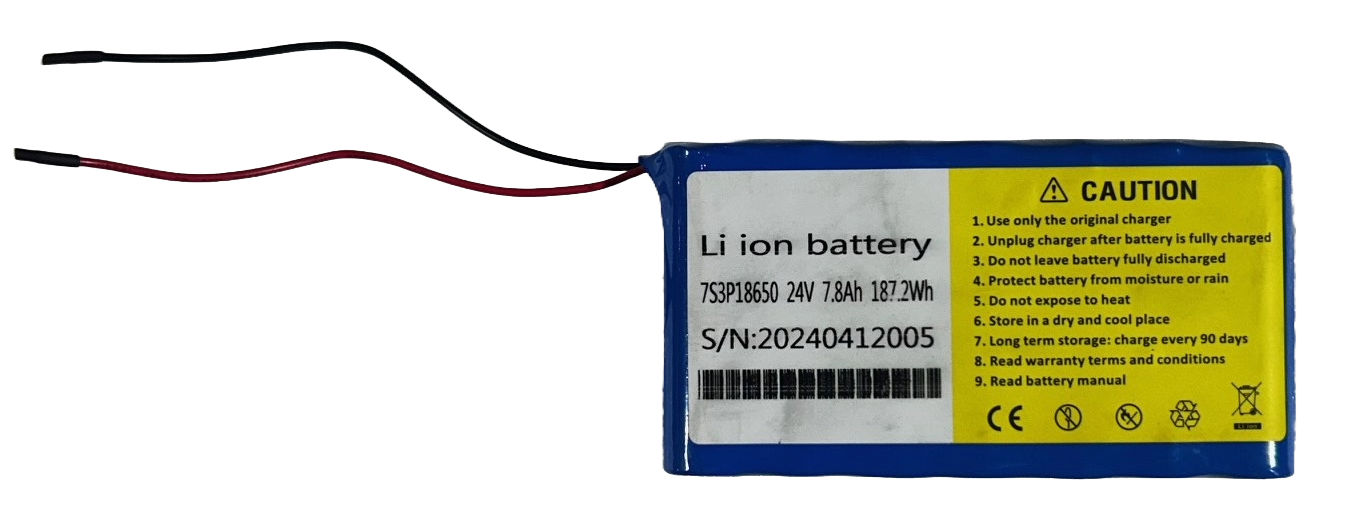

ELIN24-7.8 EagleLite 25.55V 7.8AH 18650 7S3P Daylight Signaling Lamp Li-ion Battery Pack

ELIN24-7.8 EagleLite 25.55V 7.8AH 18650 7S3P Daylight Signaling Lamp Li-ion Battery Pack

Regular price $499.95 USD
Regular price Sale price $499.95 USD
Sale Sold out

Reliable Li-Ion Battery Pack for Daylight Signaling Lamp

Keep your commercial vessel's vital daylight signaling lamp powered with a dependable Li-Ion battery pack. Daylight signaling lamps are crucial for safe communication between ships and shore during the day, especially in situations where radio communication might be unavailable or unreliable. A failing battery pack could compromise your ability to communicate with other vessels, potentially leading to misunderstandings and accidents.

This Li-Ion 25.55V 7800mAh battery pack is designed to provide long-lasting and dependable power for your daylight signaling lamp. Li-Ion batteries are known for their high capacity, meaning they can provide extended use compared to traditional batteries.They are also rechargeable, eliminating the need for frequent replacements and reducing waste.

Invest in reliable power for your daylight signaling lamp. Choose a Li-Ion battery pack and ensure clear communication at all times.

Chemistry Li-ion, 18650 7S3P
Nominal Voltage 25.55V
Fully Charged Voltage (FC) 29.4V
Fully Discharged Voltage (FD) 19.25V
Shipment Voltage ≥24V
 Nominal Capacity 7800mAh
Minimum Capacity 7500mAh

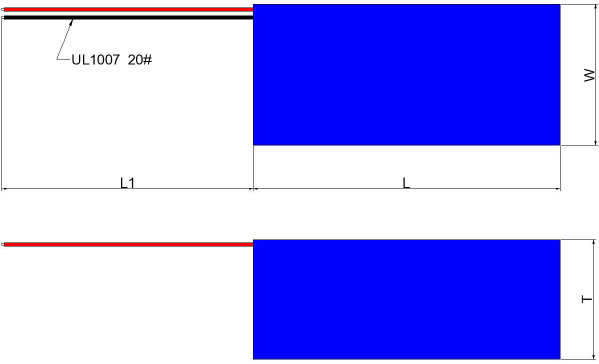

Dimensions L 135mm x W 70mm x T 56mm,
Wires : 135mm
Standard Charge Method 0.2C CC (constant current) charge to FC
Voltage, then CV (constant voltage) charge
till charge current decline to 0.01C
Max Charge Current 1.5A
Max. Discharge Current 5A
Standard Discharge Method Using 0.2C constant current discharge to
FD Voltage
Charge Temperature 0℃~50℃
Cycle Life ≥1000times
Warranty  2 years

Storage Environment

≤1 month: -20℃~60℃
≤3 months: -20℃~45℃
≤1 year: -20℃~20℃

Recommended storage temperature

25±2℃
